There are many the reason why you must construct a robotic in your spare time. For starters, you possibly can be taught loads and decide up some new abilities which may turn out to be useful later. Additionally it is quite a lot of enjoyable, and the robotic you construct can entertain you for years to return.
In case you’re on the lookout for a superb place to start out, then you must undoubtedly think about constructing Harish Choudhary’s little robotic referred to as Otto. This 3D-printed bipedal robotic is reasonable, straightforward to construct, and as cute as will be. With a number of faucets in your cellphone, Otto can discover your desk and hold you firm.
These elements are about to develop into a robotic (📷: Harish Choudhary)
The mission facilities round an accessible electronics platform that makes the robotic each approachable for newbies and versatile for experimentation. On the core of the design is an Arduino Nano growth board, which acts because the robotic’s controller. The Nano plugs into an growth board that simplifies the method of connecting motors and sensors, eradicating a lot of the difficult wiring that usually discourages first-time robotics builders.
Motion is dealt with by 4 small TowerPro SG90 Micro Servo motors. Two servos are mounted within the torso to manage the robotic’s legs, whereas the opposite two sit within the ft. Working collectively, these motors enable Otto to stroll, flip, and carry out playful dance routines. Regardless of the simplicity of the {hardware}, the coordinated movement offers the little robotic a giant character.

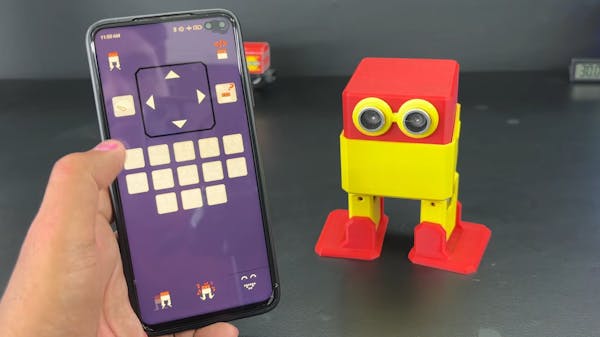

Wi-fi management is made doable by the HC‑05 Bluetooth Module, which hyperlinks the robotic to a smartphone. After pairing the machine, customers can management Otto utilizing a devoted cell app that sends instructions over Bluetooth. With easy on-screen buttons, the robotic can transfer ahead, backward, left, and proper, or set off preprogrammed behaviors corresponding to dancing and sound results.
The meeting course of (📷: Harish Choudhary)
An ultrasonic distance sensor can be utilized for impediment detection, whereas a small buzzer permits Otto to chirp, beep, and react to its atmosphere. Energy comes from two 3.7-volt lithium-ion batteries related in sequence, delivering roughly 7.4 volts to the system by a change and charging socket.
The robotic’s physique is made fully from 3D-printed components, together with the pinnacle, torso, legs, and ft. Throughout meeting, the servos are first mounted securely within the torso earlier than the legs and ft are connected. Servo wires are rigorously routed by the legs and into the physique to maintain every part tidy. As soon as the electronics are put in, your complete system matches neatly contained in the printed shell.
Earlier than the robotic can take its first steps, it wants a little bit of software program. Builders add the management program by the Arduino IDE utilizing code developed by Choudhary. This system defines which pins management the servos, buzzer, and Bluetooth module, guaranteeing every part works collectively easily.
For newbies occupied with robotics, Otto is a pleasant introduction to electronics, programming, and mechanical design — all packed right into a robotic that’s arduous to not smile at.
