Aconity3D has a line of open methods in polymer LPBF, metallic LPBF, and WireDED. Plenty of universities and researchers use Aconity methods to develop new processes, take a look at new unique supplies, do extra with parameters, and develop totally new 3D printing applied sciences. Its Midi system can warmth as much as 1000 °C whereas letting you play with each attainable parameter. A microsystem has a 40 µm spot measurement and layer thicknesses underneath 10 µm and is supposed for small constructions and powders. The corporate has now added a brand new multi-material head to its DED system.
AconityWIRE 3D printer.
The AconityWIRE has a construct quantity of 400 by 780 mm. The system works with coaxially fed welding wire and has a 6-axis robotic and a 2-axis turn-tilt desk. The nozzle is shielded, and the system may be heated to 500 °C. Powered by a 1000 W or 1200 W fiber laser. It has been validated on Aluminum, Stainless Metal, Inconel, and Titanium wire. The machine is 3000 x 1500 x 2200 mm and weighs 2 tonnes.

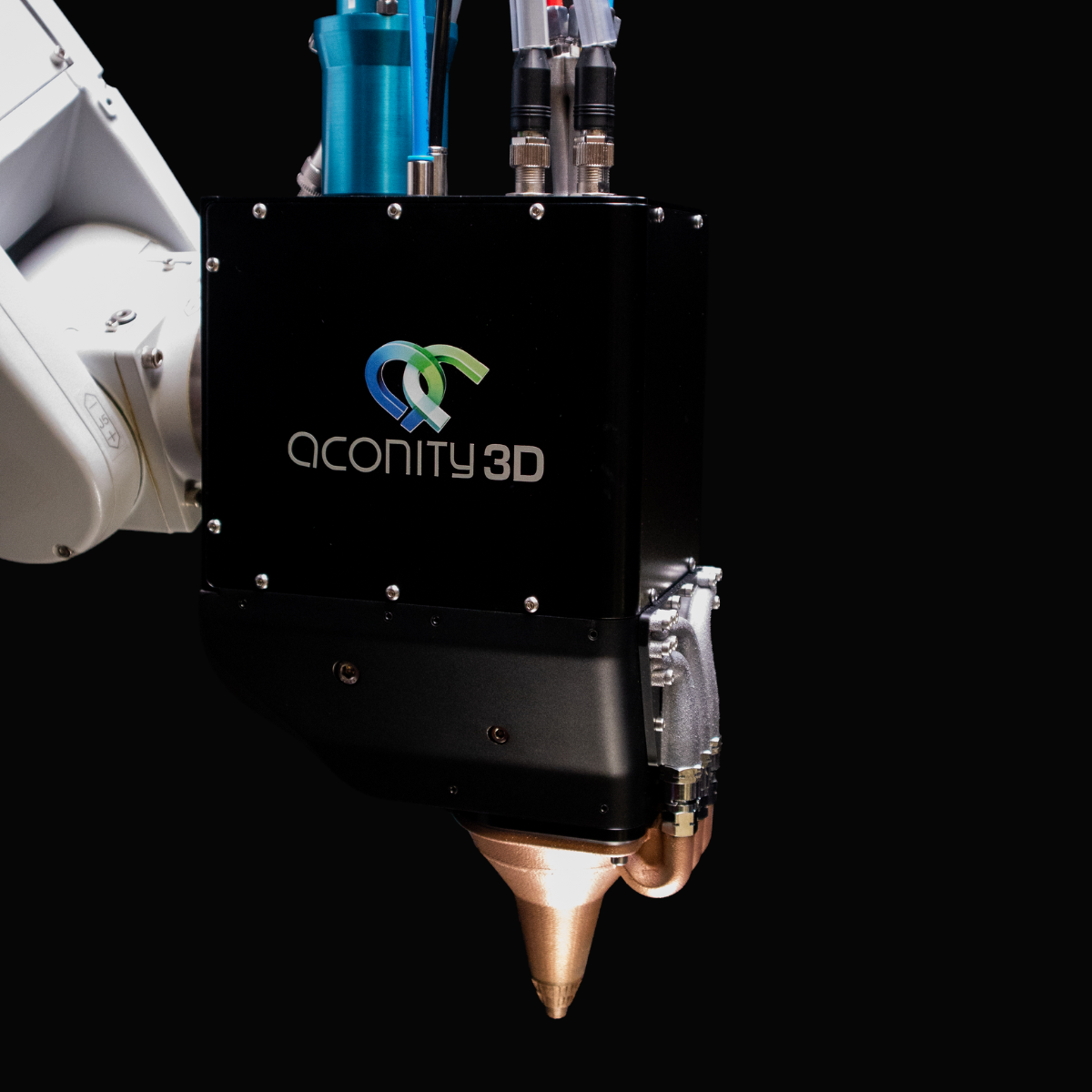

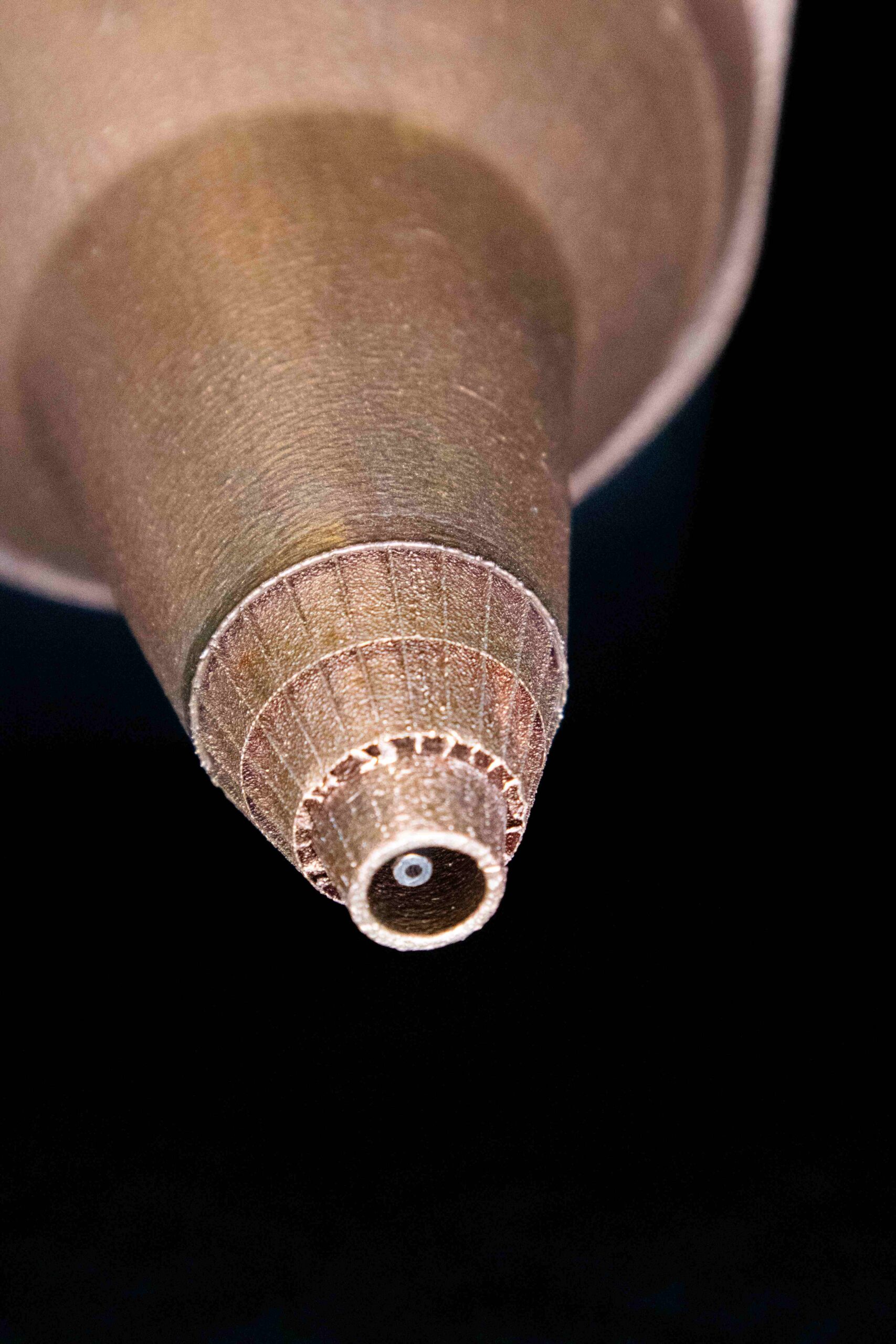

AconityWIRE Multi-Materials Weld Head with Robotic.
The brand new head can use as much as 3 completely different supplies in a single construct. The corporate says that the system doesn’t should be considerably modified to implement completely different supplies. Aconity additionally thinks that MRO, augmentation, and restore may very well be good use instances for the nozzle. The top can be utilized with the AconityWIRE, however it may also be added to a different system. Rosenheim Technical College of Utilized Sciences already has one and there it’s getting used to make multi-material elements.
WireDED is seeing renewed curiosity in manufacturing. Power industries are this course of for restore and half manufacturing. In mining, oil, fuel, and nuclear, we are able to see individuals wanting to make use of WireDED for half manufacturing. With cheap wire, well-understood processes, and a big construct quantity, WireDED (and in addition blown-powder DED) offers a cheap resolution for a lot of bigger elements. WireDED is safer to make use of than many processes as properly, because it doesn’t use any powders. That makes it a burgeoning space for expeditionary manufacturing and navy use as properly. Mixed with wire mixing, the talents of those methods are compounded. One may make armor or hardened surfaces for instruments with such a course of. Giant molds with put on surfaces and conductive ones may very well be made as properly. Maybe gradient, or gradient-like elements, may very well be made as properly. You would do cool issues as properly, resembling combining very comfortable supplies with arduous ones. For automotive, this expertise may very well be made to work for chassis elements. We’re already seeing impression in aviation from DED, which is now used to provide industrial plane elements.
Usually, important machining is required to make elements easy. But when we begin pondering a bit in another way, DED will get less expensive. So long as mating surfaces and useful areas are machined to spec and we verify the half’s dimensional tolerances, there isn’t any have to machine the entire thing. I do know this sounds tremendous apparent, however individuals nonetheless are likely to make elements easy as they arrive from different processes. For some issues, that is wanted. However for a lot of elements, we don’t have to machine all the half. Uncooked printed WireDED elements are tremendous low cost. If we are able to use them, then the economics are tremendous good. With this mindset, less expensive industrial elements at the moment are attainable. Low cost, forward-deployed restore and manufacturing of multi-material uncooked DED elements may very well be very impactful for militaries and in business. Together with Meltio and Hybrid Manufacturing Applied sciences, there’s now an alternative choice for a head that may be built-in into your new machine or new analysis undertaking. This may also assist this phase mature and develop. WireDED has lengthy been an underrepresented space in our business; this can be about to vary.
Photos courtesy of Aconity3D GmbH
