Makera’s first CNC mill was the Carvera. It was a giant hit, but in addition considerably costly. So, they adopted that up with the extra reasonably priced Carvera Air. There are just a few variations between the 2 machines, however essentially the most notable is the ATC (computerized device changer). The Carvera has one and the Carvera Air doesn’t. However when you have a Carvera Air and also you’re uninterested in swapping instruments manually, it seems you could add an ATC to your machine.
This Instructables tutorial was created by Warioo, but it surely demonstrates a modification that’s already identified within the Makera neighborhood. When Makera designed the Carvera Air, they omitted the device changer and its related {hardware}. However they left the connections for the ATC stepper motor and sensor. With only a handful of reasonably priced elements, you’ll be able to construct an ATC that works seamlessly together with your Carvera Air.

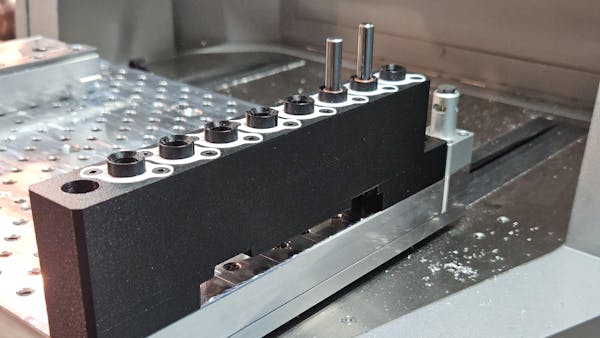

The large caveat right here is that this mod will take up mattress house. The ATC journal goes on the far-right facet of the mattress, so that you’ll lose some working space within the X axis. However that can be a worthwhile sacrifice for a lot of of you.
Most of the elements you’ll must carry out this modification could be 3D-printed and even milled on the Carvera Air itself. Other than these, you’ll want a 50:1 geared stepper motor, a restrict swap, magnets, springs, and a wide range of fasteners. That ought to all price lower than $100 — perhaps even lower than $50, in the event you’re good at sourcing elements in low portions.
The operation is fairly easy: the stepper motor turns the collet locking mechanism on the spindle to grip/launch instruments and the restrict swap alerts when that’s within the open or closed place. Every little thing else is simply mounting these and the device journal, plus flashing the brand new firmware that tells the Carvera Air it has an ATC now.
That’s it! For surprisingly little cash and work, you’ll get the comfort of ATC in your Carvera Air and the one sacrifice is a few mattress house.
