Whether or not you are attempting to get the proper combine to your epoxy or conductive adhesive, or you could get the thermal compound combination good to dissipate warmth from a chip you might be pushing to its limits, a high-precision scale will are available very useful. Nevertheless, these scales could be fairly costly. And contemplating that almost all of us use them occasionally, we are likely to do with out them and easily eyeball issues to the very best of our capability.
There isn’t any want to do this if you’re prepared to place in a bit of work, nevertheless. As Clive Mitchell has simply demonstrated, a extremely correct scale could be hacked collectively in only a few minutes for beneath $5. You’ll solely want a small variety of fundamental parts to get the job achieved.
A block diagram of the HX711 (📷: Clive Mitchell)
In a current video, Mitchell, an electronics educator and YouTuber, walks viewers via the straightforward know-how that powers many digital scales. On the core of the DIY system he creates are two key elements: a load cell that detects weight and a tiny interface module constructed across the HX711 load cell amplifier module.
The load cell consists of rigorously engineered items of metal. It seems like a easy steel bar with holes drilled via it, however these holes are vital to its perform. Their measurement and placement decide how a lot the steel can flex when weight is utilized, which in flip defines the utmost load the sensor can measure—whether or not that’s one kilogram or twenty.
Hooked up to this steel construction are pressure gauges, zigzag-shaped resistors bonded on to the floor. When the steel flexes even just below load, these gauges stretch as properly. That tiny deformation causes a slight change in electrical resistance.
On their very own, these resistance adjustments are extraordinarily small and tough to measure. That’s the place the HX711 module is available in. This cheap chip provides a secure voltage to the load cell, filters out electrical noise, and amplifies the sign coming from the pressure gauges. It additionally features a high-resolution 24-bit analog-to-digital converter, permitting it to translate minute resistance variations into exact digital readings which are proven on an onboard seven-segment show.
Assembling the system (📷: Clive Mitchell)

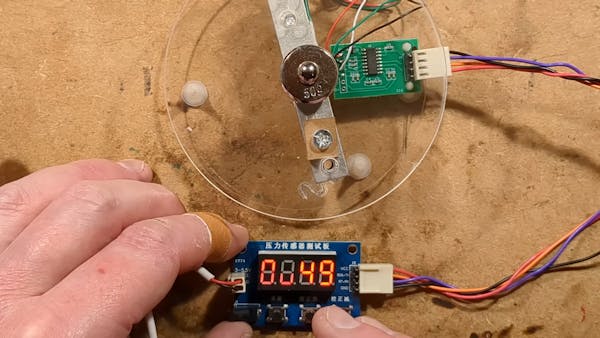

The bodily construct is simple. One finish of the load cell is mounted to a base, whereas the opposite helps a small platform. When weight is positioned on the platform, the steel bends ever so barely, triggering the pressure gauges and producing a measurable sign.
Calibration can also be easy. After powering up the module, the person first performs a zero calibration to clear any baseline studying. Then a recognized reference weight is positioned on the platform. Adjustment controls enable the size’s inside calibration issue to be tuned till the displayed studying matches the reference weight precisely. As soon as set, these values could be saved in reminiscence so the system stays correct even after being powered off.
If you wish to construct your personal digital scale at a cut price value, take a look at the video under for extra particulars.
