Plastometrex has launched its new MultiScale functionality to assist customers seize high-resolution mechanical property variation throughout skinny, welded, and complicated geometries which can be sometimes inaccessible to standard mechanical testing.

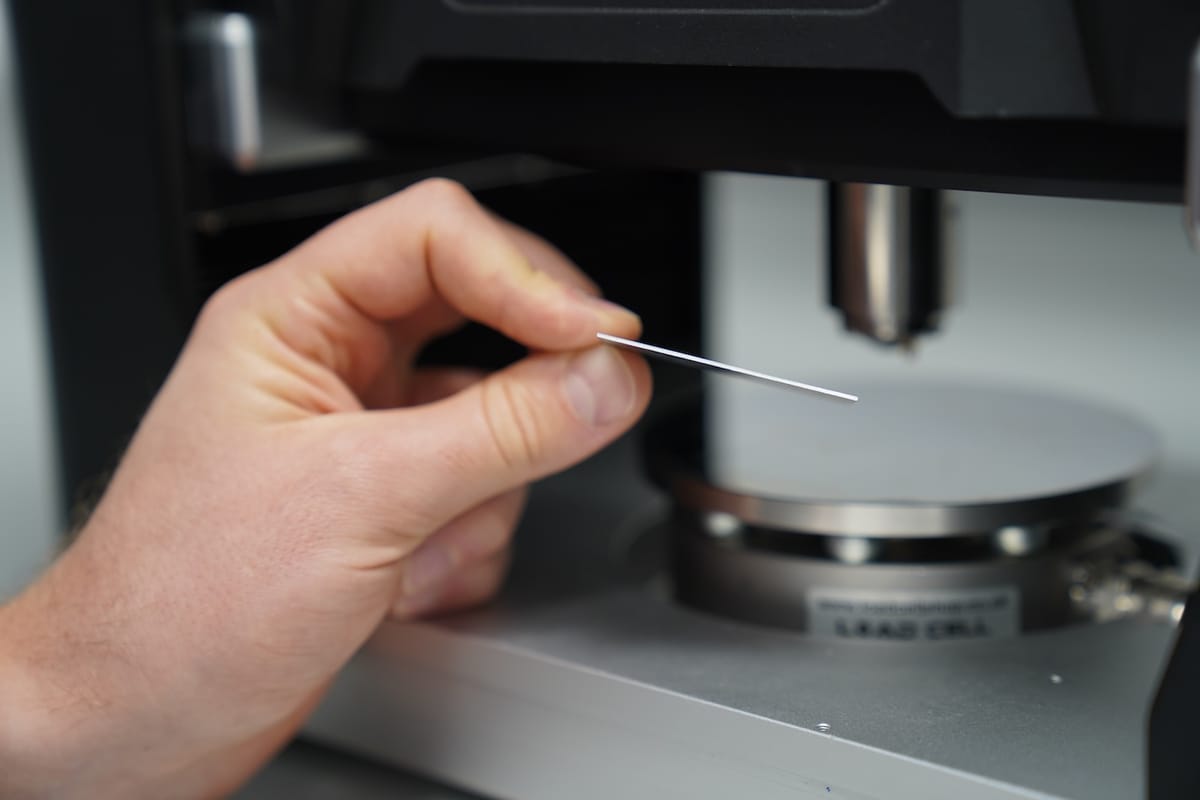

It has been developed in a bid to handle a ‘widespread hole in mechanical testing.’ MultiScale is alleged to allow direct testing on parts and specimens as skinny as 0.75 mm, extracting correct mechanical information with out harmful sectioning, whereas mapping mechanical properties throughout welds and complicated geometries with 1.5 mm indent spacing to supply high-resolution perception into native variations and course of efficiency.
This functionality is powered by Plastometrex’s Profilometry-based Indentation Plastometry (PIP) Testing expertise, which extracts stress-strain curves from indentation check information utilizing accelerated inverse finite factor evaluation, and is accessible to all PLX-Benchtop customers by their CORSICA+ subscription.
PLX-Benchtop is a quick and compact system that non-destructively gathers yield and supreme tensile power (UTS) information from an automatic five-minute check. The usual indenter measurement in each PLX-Benchtop machine is 1000 µm; nonetheless, with the addition of the MultiScale functionality, customers are actually mentioned to have entry to 250 µm and 500 µm indenters, permitting mechanical behaviour to be captured at quite a lot of scales.
Dr Jimmy Campbell, CTO at Plastometrex, mentioned: “We developed the MultiScale functionality to provide engineers entry to the information they’ve been lacking. Lots of our customers work with components which can be too skinny or geometrically advanced for standard mechanical testing. We needed to alter that, to make it doable to check the untestable and seize dependable property information wherever it’s wanted.”
In response to Plastometrex, MultiScale has already been used by NASA to characterise native variations in mechanical properties inside spaceflight parts. By mapping stress-strain responses throughout an additively manufactured half, process-structure-property relationships have been revealed, which helped to tell manufacturing optimisation and cut back conservative security elements. Yield power is alleged to have fallen by roughly 15% as wall thickness decreased, an perception which, Plastometrex says, would have been missed by tensile testing
Dr Mike Coto, CCO at Plastometrex, added: “MultiScale provides customers the power to zoom in on the wonderful particulars that drive general efficiency. That degree of decision helps extra environment friendly design selections, whether or not which means adjusting print parameters, refining weld procedures, or decreasing pointless security margins whereas sustaining structural integrity.”
