I feel these of us with voices within the maker group are likely to neglect that the issues we are saying are largely gibberish to the overwhelming majority of individuals. That may make every part we do appear inaccessible to much less skilled people. However James Clough, AKA Clough42, excels at offering explanations that anybody can grasp. His latest video — an summary of the Raspberry Pi Pico-based electronics that can drive a mechanical clock — is the right instance.
Clough’s YouTube channel leans in direction of machining, 3D printing, and basic fabrication, so he has the perfect viewers for a video like this. You could be a part of that group if you are interested in making issues, however have been overwhelmed by digital elements like microcontrollers.
Clough will finally make a mechanical clock and it’s certain to have some extravagant mechanisms. However these will likely be pushed by stepper motors and this video goes into element on that. All the goal of the digital “backend” is to allow extraordinarily correct timekeeping by way of GPS. All the elements that Clough chosen are there to seize that point and regulate the mechanical clock accordingly.
GPS is ideal for that job, as a result of it really works by means of triangulation and that depends on extraordinarily exact timing. If you may get a sign from even one GPS satellite tv for pc — which needs to be doable anyplace on the floor of the Earth — you may have a free supply of correct and exact timekeeping.
The Raspberry Pi Pico is a microcontroller growth board (MDB) that grabs that point from a cheap GPS receiver by way of a UART serial connection. A small TFT LCD display connects to the Pico by means of SPI and shows info on GPS sign integrity and the set time zone. Lastly, the Pico controls six stepper motors by means of TMC2208 stepper drivers. It does that by producing the pulses that inform the stepper motors what number of steps to maneuver.
Clough offers detailed explanations about how every of these steps works.

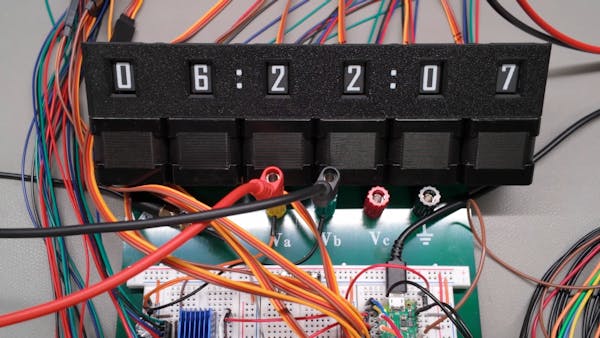

For the demonstration, Clough constructed a “check fixture” to show the time. That’s easy, with the stepper motors turning wheels with printed numbers in entrance of home windows. That’s fairly cool, however I count on the precise mechanical clock design to be extra extravagant and spectacular, so hold a watch out for that.
